Home / Products

Pick a model.
Read the specs.

LiFePO4 batteries and an all-in-one power station for solar systems, inverters and backup power.

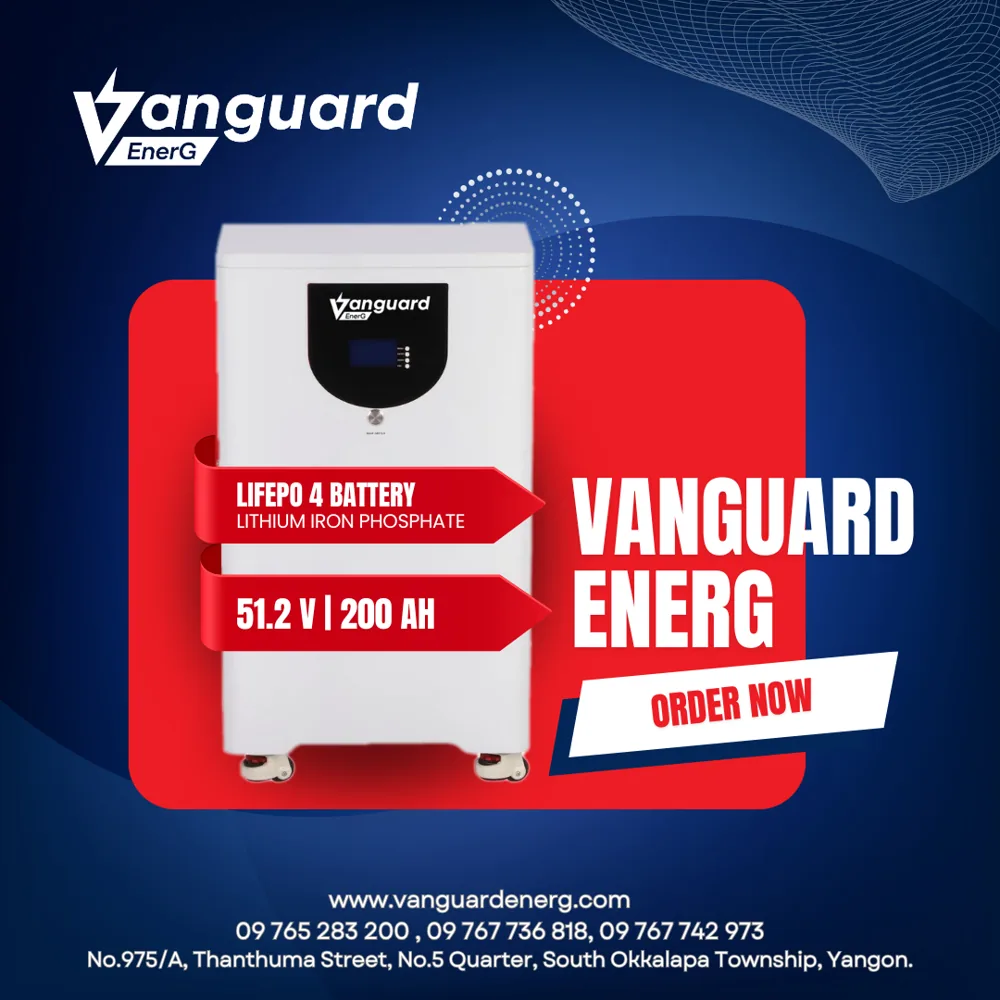

VG-512200

200Ah Battery

High-performance energy storage built for reliability and efficiency. Its large capacity provides extended power for solar energy systems, inverters and backup power setups, with a maintenance-free design and overcharge and short-circuit protection.

Rated energy10,240Wh
Voltage51.2V
Max. current150A
Energy vs. largest pack10,240 / 16,384 Wh
  • Longer cycle life
  • Lighter weight
  • Higher power
  • Wider temperature range
  • Superior safety
ModelVG-512200
ChemistryLithium Iron Phosphate (LiFePO4)
Rating10240Wh / 51.2V / 200Ah
Charge voltage57.6V
Max. discharge current150A
Max. charge current150A
Size740 x 450 x 260 mm
Weight91 kg
ManufacturerMade in China

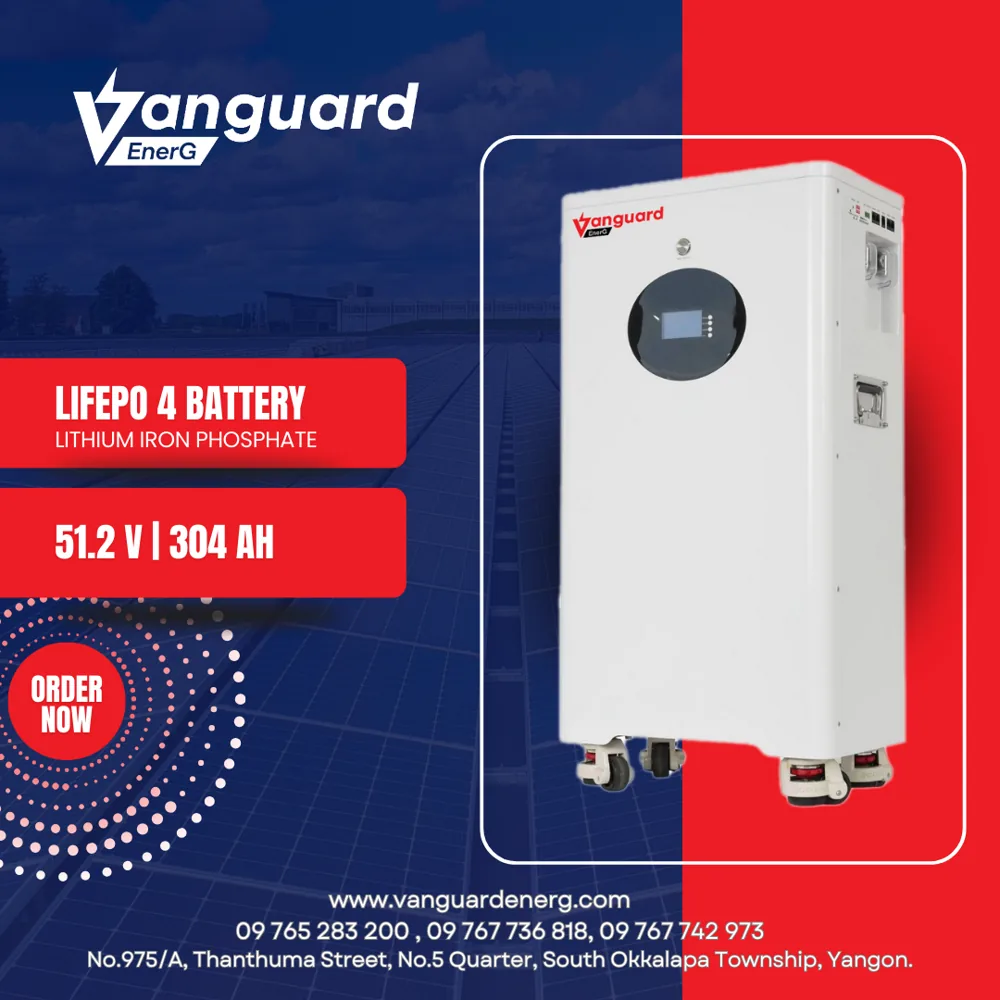

VG-512304

304Ah Battery

A robust, dependable power source with deep-cycle performance for solar setups, off-grid systems and backup power. It handles frequent charging and discharging, with a low-maintenance design and built-in safety features. Works with multiple brands of inverters.

Rated energy15,360Wh
Voltage51.2V
Max. current200A
Energy vs. largest pack15,360 / 16,384 Wh
  • Longer cycle life
  • Lighter weight
  • Higher power
  • Wider temperature range
  • Superior safety
  • Multi protocol
ModelVG-512304
ChemistryLithium Iron Phosphate (LiFePO4)
Rating15360Wh / 51.2V / 304Ah
Charge voltage57.6V
Max. discharge current200A
Max. charge current200A
Size812 x 450 x 260 mm
Weight112 kg
ApplicationsTelecom base stations, UPS, household energy storage, smart transportation backup
ManufacturerMade in China

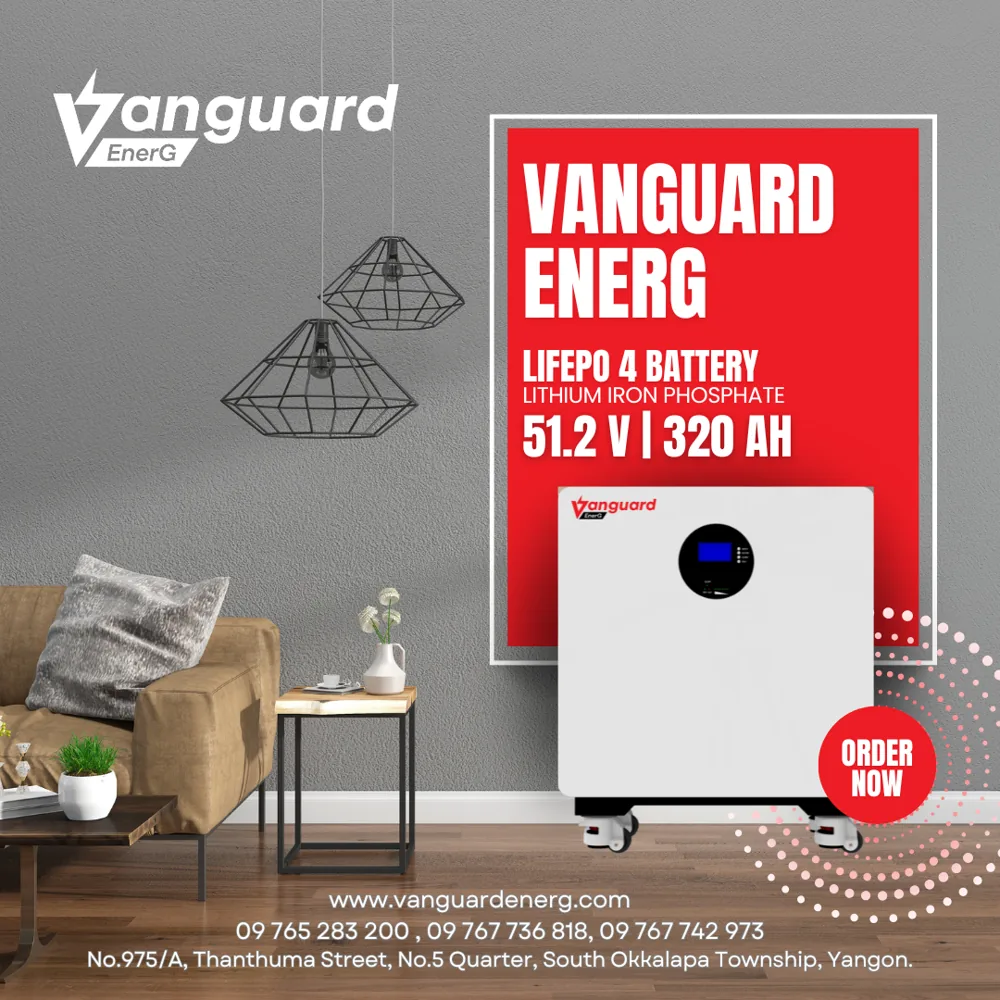

VG-512320

320Ah Battery

High-capacity energy storage with deep-cycle technology for solar power systems, inverters and large-scale backup energy needs. Maintenance-free, with overcharge and short-circuit protection.

Rated energy16,384Wh
Voltage51.2V
Max. current200A
Energy vs. largest pack16,384 / 16,384 Wh
  • LiFePO4
  • Deep cycle
  • Maintenance-free
  • Overcharge protection
  • Short-circuit protection

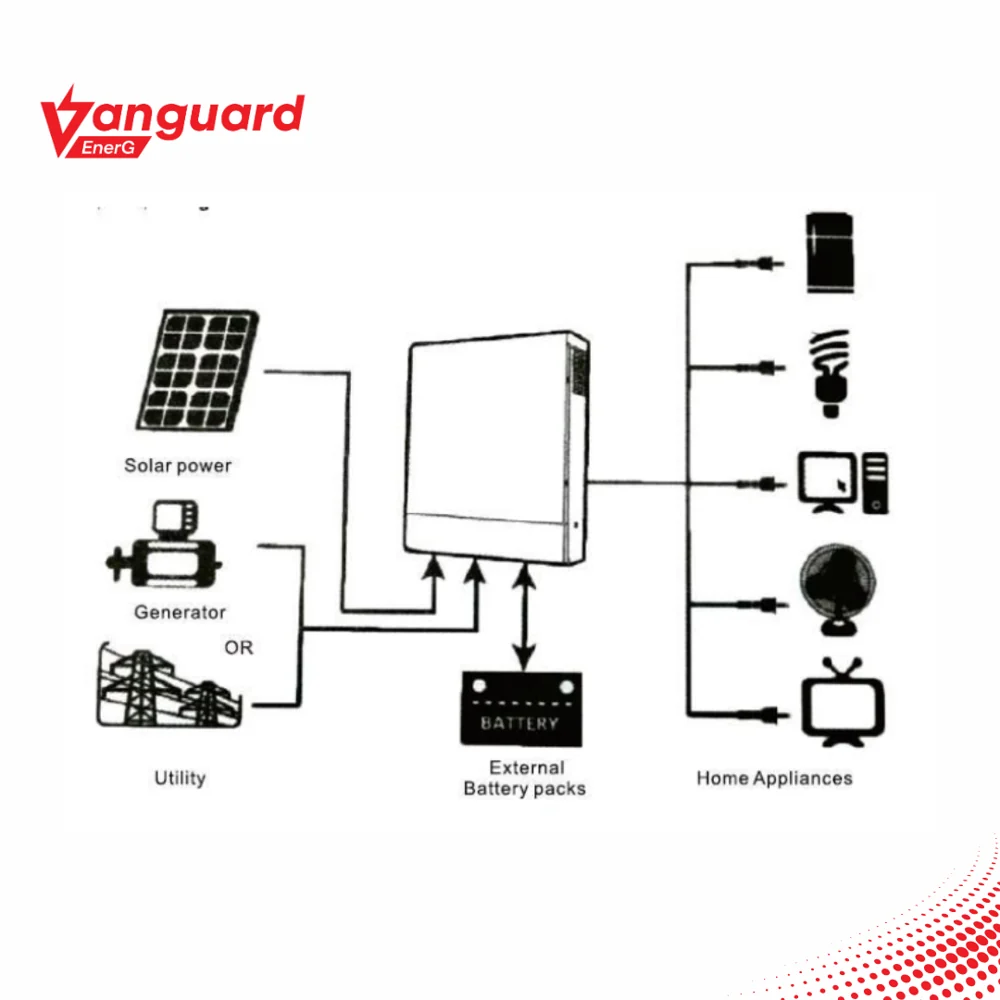

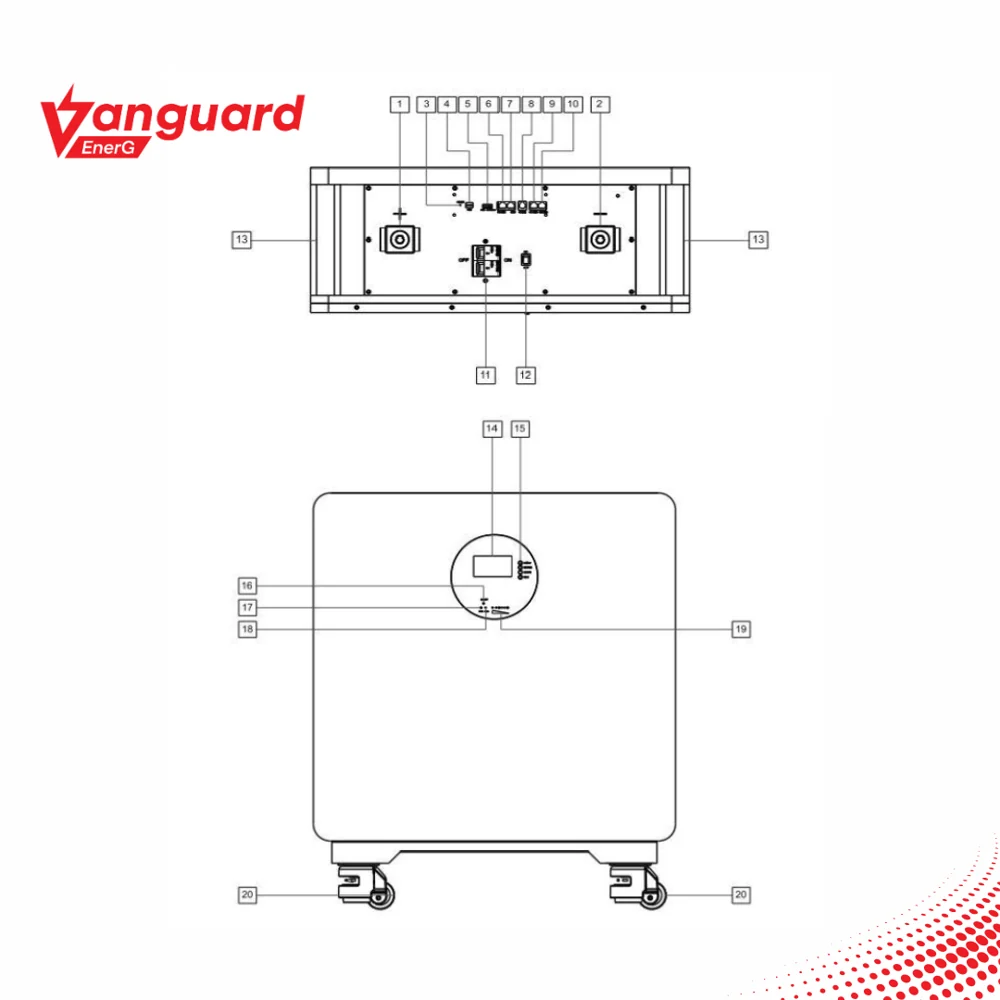

Diagrams
Model numberVG-512320
Battery typeLiFePO4
Rated voltage51.2 Vdc
Rated capacity320Ah
Max BMS voltage58.4 Vdc
Min BMS voltage43.2 Vdc
Rated energy16384Wh
Max cont. charge200A
Max cont. discharge200A
Charging temperature0 ~ 55 °C
Discharging temperature-20 ~ 55 °C

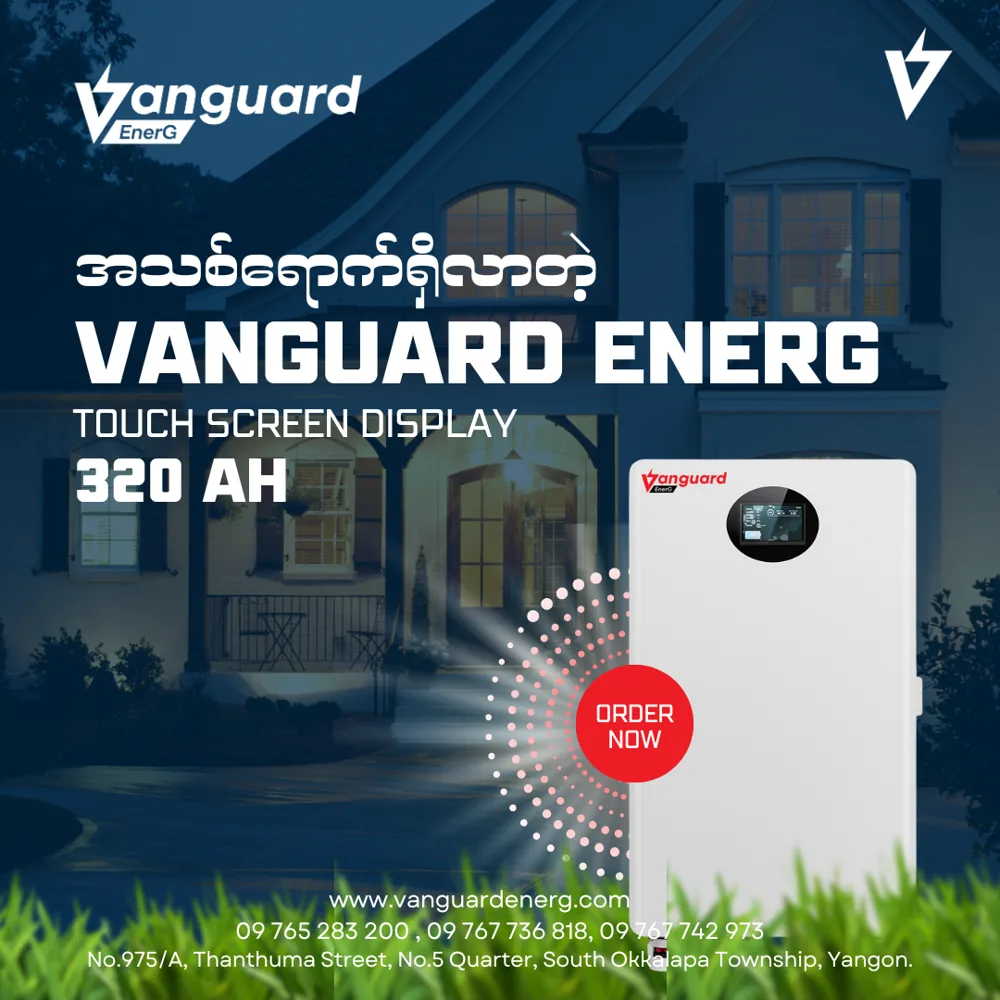

VG-512320

320Ah Touch Screen

The 320Ah pack with a touch-screen display: cutting-edge technology with a user-friendly interface for enhanced control and monitoring.

Rated energy16,384Wh
Voltage51.2V
Max. current200A
Energy vs. largest pack16,384 / 16,384 Wh
  • Touch-screen display
  • LiFePO4
  • Control & monitoring
Diagrams
Model numberVG-512320
Battery typeLiFePO4
Rated voltage51.2 Vdc
Rated capacity320Ah
Max BMS voltage58.4 Vdc
Min BMS voltage43.2 Vdc
Rated energy16384Wh
Max cont. charge200A
Max cont. discharge200A
Charging temperature0 ~ 55 °C
Discharging temperature-20 ~ 55 °C

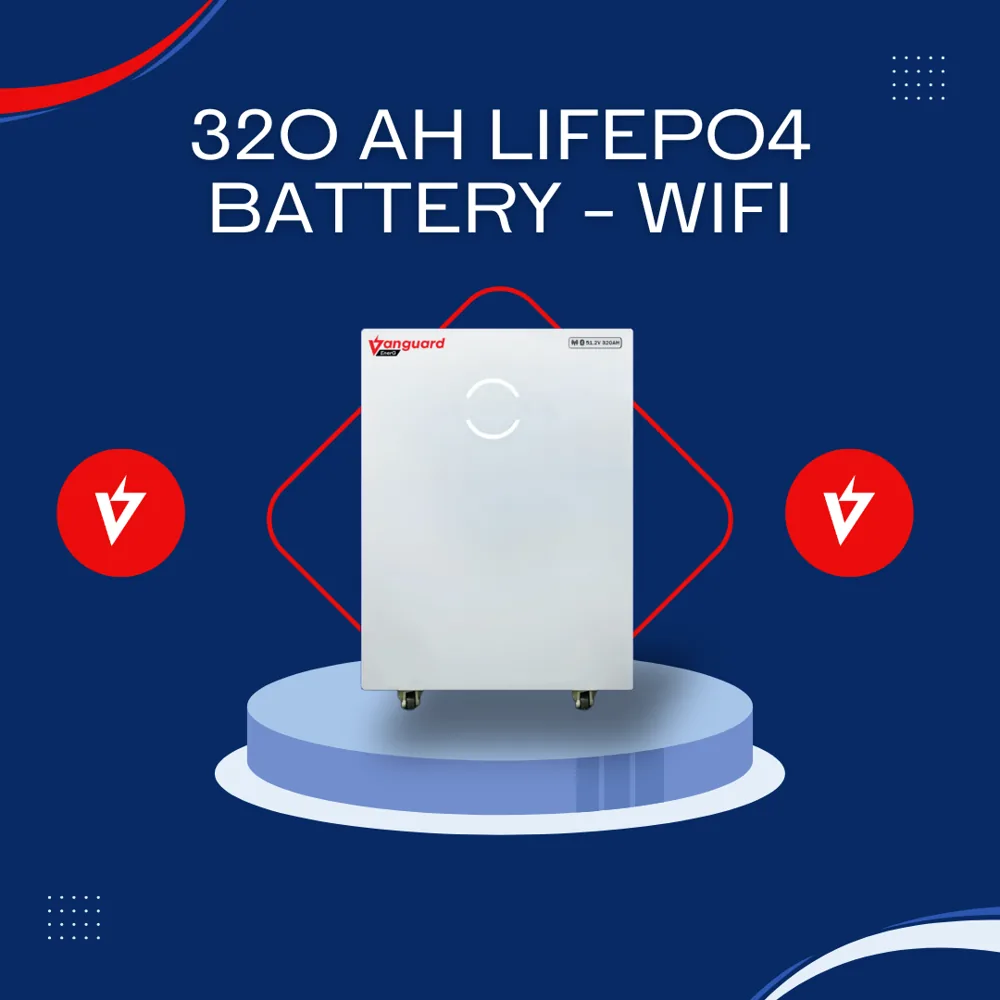

VG-512320-W

320Ah WiFi

The WiFi-enabled 320Ah pack, rated for indoor use, with up to 15 units in parallel.

Rated energy16,384Wh
Voltage51.2V
Max. current200A
Energy vs. largest pack16,384 / 16,384 Wh
  • WiFi
  • LiFePO4
  • Up to 15 in parallel
  • UL CB cell certification
Diagrams
Model numberVG-512320-W
Battery typeLiFePO4
Nominal voltage51.2V
Nominal capacity320Ah
Total capacity16384Wh
Max continuous charge / discharge200A
Recommended charge / discharge150A
Maximum power output10.24kW
Charging temperature0 ~ 50 °C
Discharge temperature-20 ~ 60 °C
Dimension821.4 x 621.4 x 240 mm
Weight145 kg
IP ratingIP21, for indoor use
Maximum parallel quantity15
Certification of cellUL CB

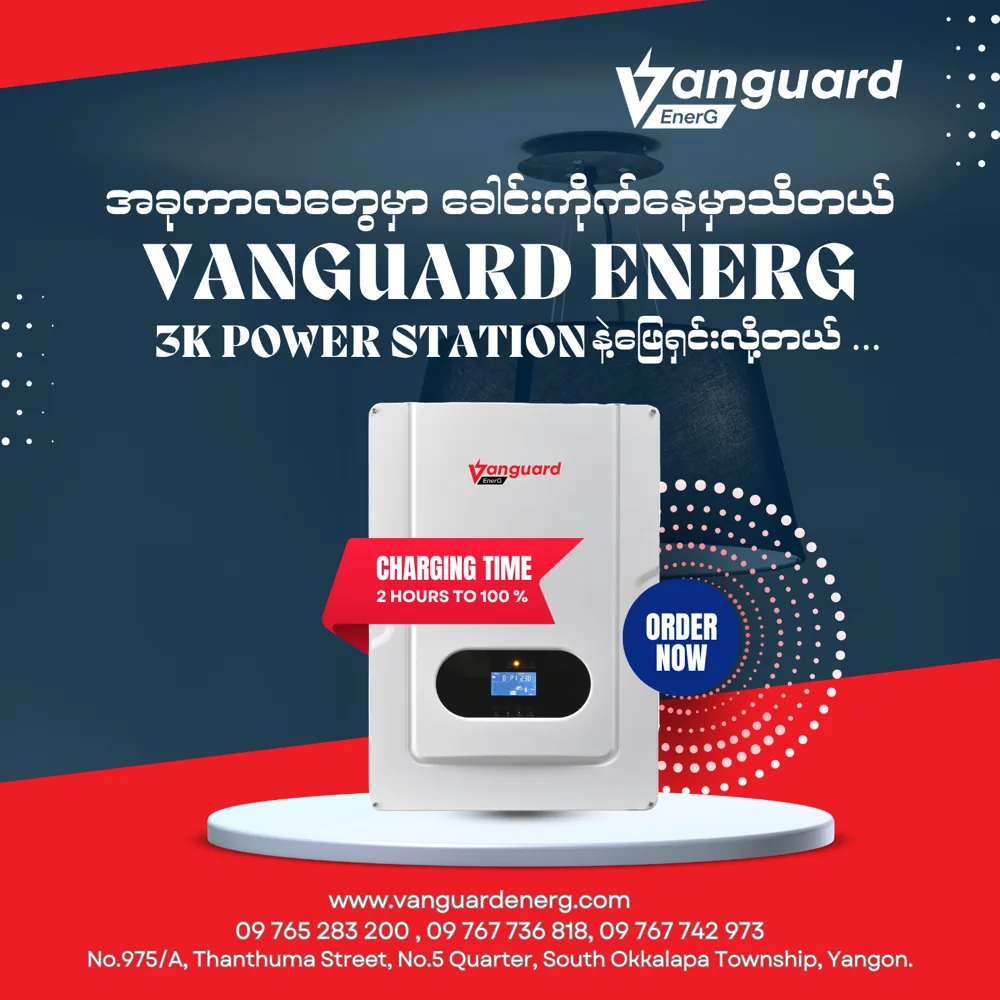

VG-112025-01

3KVA Power Station

A compact, reliable, high-performance wall-mounted all-in-one solar system for uninterrupted energy at homes, businesses and outdoor applications. Powers multiple devices and appliances in a portable, space-saving design built for demanding conditions.

Rated energy2,560Wh
Voltage25.6V
Charger50A
Energy vs. largest pack2,560 / 16,384 Wh
  • High capacity
  • Compact design
  • Durable & reliable
  • All-in-one solar

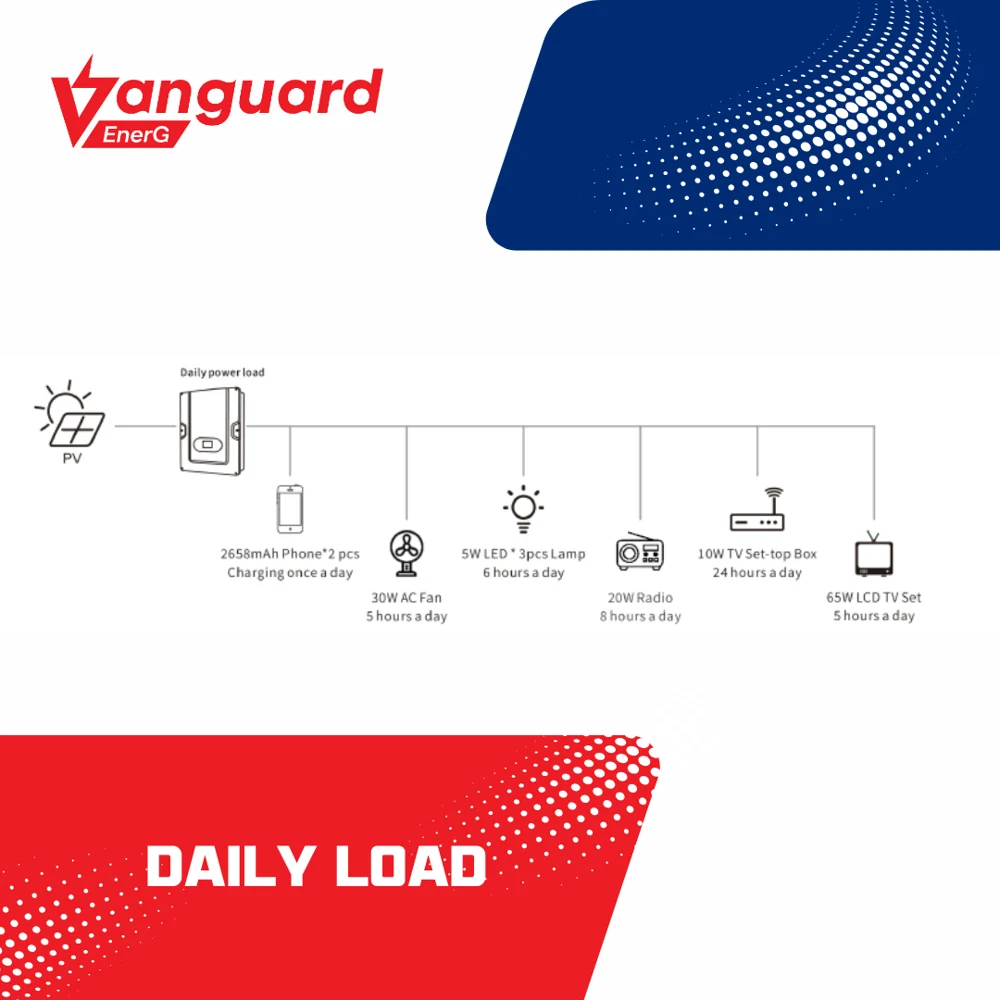

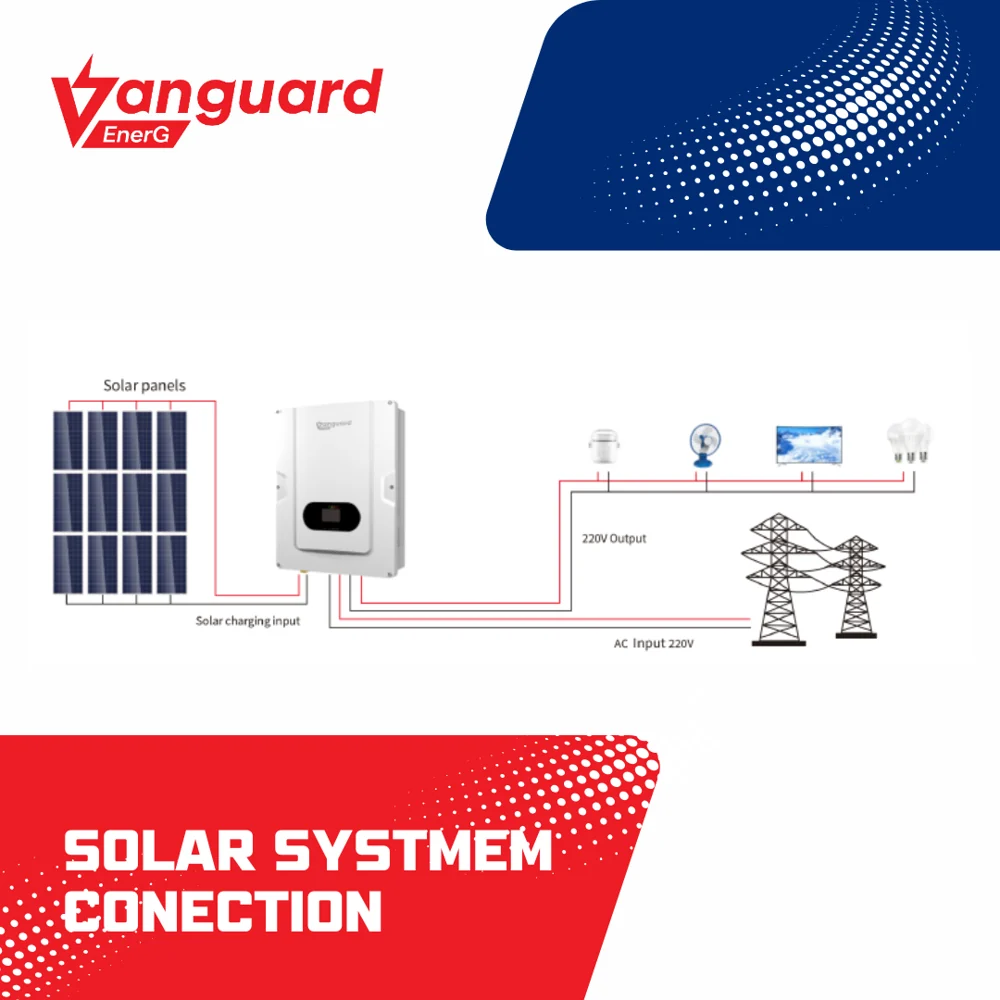

Diagrams
ModelVG-112025-01
DesignWall mounted, all-in-one solar system
Battery capacity2560Wh
Operating temperature-10 ~ 50 °C
Operating altitude< 2000 m
Degree of protectionIP20
Battery input25.6 VDC
AC output230VAC, 50/60Hz, 22A
Rated power3KVA
AC input (charger)230VAC, 50/60Hz, 20A
Max. AC charger current50A
Max. PV input voltage (VOC)35 VDC
Max. charge current50A
Max. PV power1500W

Compare

All models, side by side

Rated energy, voltage, current and physical size from the official specification sheets.

200Ah Battery
10,240 Wh
304Ah Battery
15,360 Wh
320Ah Battery
16,384 Wh
320Ah Touch Screen
16,384 Wh
320Ah WiFi
16,384 Wh
3KVA Power Station
2,560 Wh
ModelCodeRated energyVoltageMax. charge / dischargeSize (mm)Weight (kg)
200AhVG-51220010,240 Wh51.2 V150 A / 150 A740 x 450 x 26091
304AhVG-51230415,360 Wh51.2 V200 A / 200 A812 x 450 x 260112
320AhVG-51232016,384 Wh51.2 V200 A / 200 A——
320Ah WiFiVG-512320-W16,384 Wh51.2 V200 A (rec. 150 A)821.4 x 621.4 x 240145
3KVA StationVG-112025-012,560 Wh25.6 V50 A charger——

Why LiFePO4

Lithium iron phosphate vs. lead acid

According to Vanguard EnerG, compared with a lead-acid battery:

Cycle life

Up to 10×

Up to ten times longer cycle life and five times longer float/calendar life, minimizing replacement cost.

Weight

About 40%

About 40% of the weight of a comparable lead-acid battery: a drop-in replacement.

Power

2×

Delivers twice the power, even at a high discharge rate, while keeping high energy capacity.

Temperature

-20~60°C

Wide operating range. LiFePO4 chemistry removes the risk of explosion or combustion from impact, overcharge or short circuit.

Distributors & customers

Need help choosing?

Tell us your inverter and daily load and we will help you pick the right battery.
